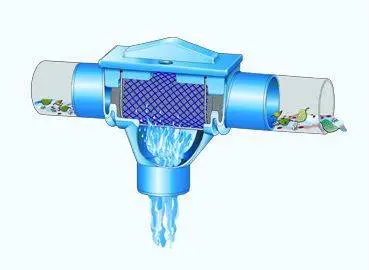

3P Compact Rainwater Filter

The 3P Compact Filter is ideal where there is little room and no height difference available between inlet and outlet. It can be installed within rainwater tanks.

The 3P Compact Filter is ideally suited for use in conjunction with a 3P Overflow Siphon and the 3P Calmed Inlet. The 3P Back Washing Device is also recommended for using with this filter.

Low maintenance, self cleaning, depending on the level of solids in the incoming rainwater.

The filtered water can be used for domestic purposes (in washing machines, toilet flushing) for garden irrigation; it is also suitable for using in commercial and public buildings and within the industry sector

• Connection capacity for roof areas up to 150 m²
• All connections DN 100 (110mm OD).
• No height difference between inlet and outlet.
• Mesh size of filter cartridge 0.7 x 1.7 mm.

Technical Data

Filter according to DIN 1989-2, Typ C

Connection inlet: DN 100
Outlet into tank: DN 100
Outlet into sewer: DN 100

Height difference between rainwater inlet and outlet 0 mm.

Housing material: Polyethylen

Filter cartridge: Stainless steel 1.4301
Material Poly-Net: Polyethylen

Mesh size: 0,7 x 1,7 mm

Weight: 1,4 kg
